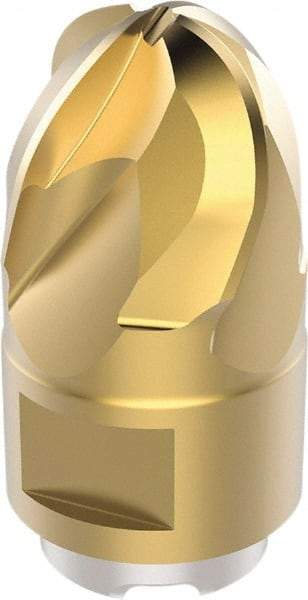

Seco - MP10 Grade MP3000 Carbide Ball Nose Milling Tip Insert - TiAIN/TiN Finish, 4 Flutes, 9.53mm Cutting Diam, 7mm Depth of Cut, 16mm Extension, 3/16" Cnr Rad
Item #: 39682398
Brand: Seco
Model #: 02880995
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster Plus |
| Milling Tip Style | MP10 |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 9.53 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MP3000 |
| Depth of Cut (mm) | 7.00 |
| Number of Flutes | 4 |
| Coating | TiAIN/TiN |
| Corner Radius (Inch) | 3/16 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.3750 |
| Extension From Holder (mm) | 16.00 |
| Included Angle | 90 |
