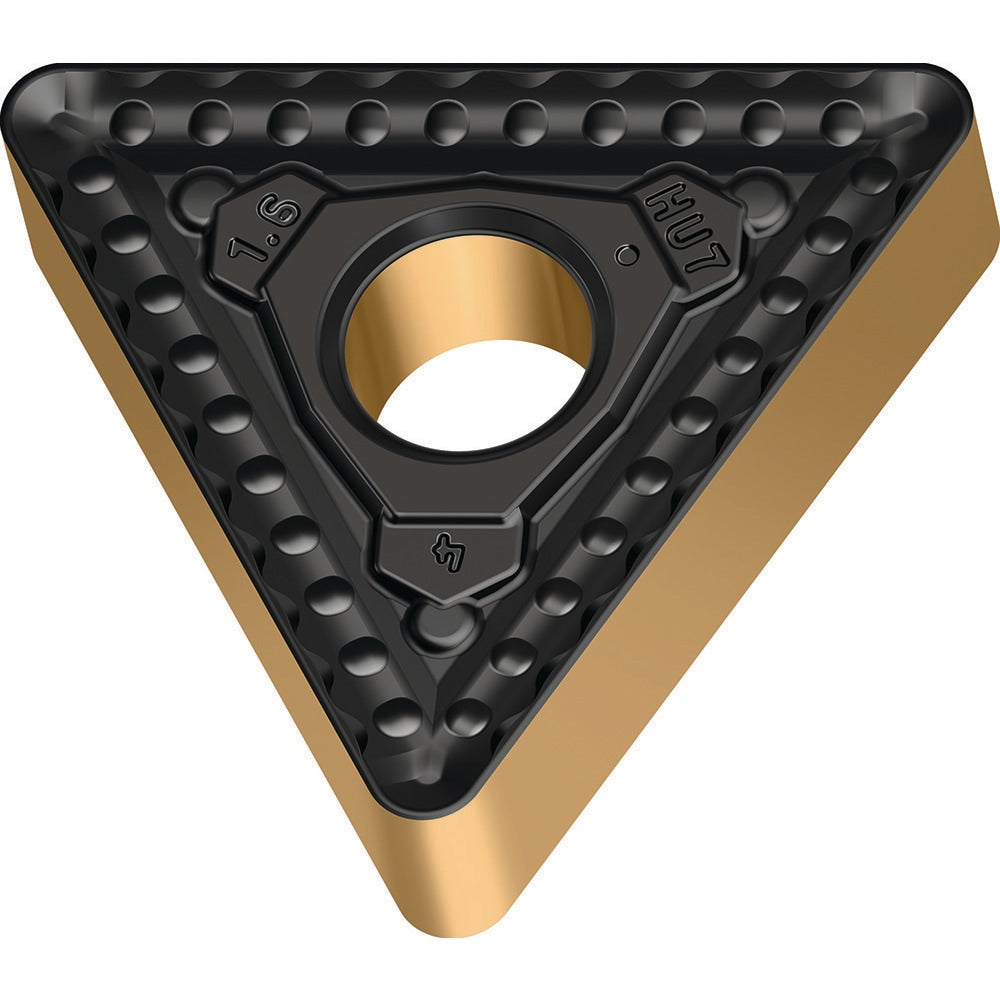

Turning Insert: TNMM544HU7 WPP30G, Carbide
Item #: 90890781
Brand: Walter
Model #: 8138452
Product Specifications
| ANSI Insert Code | TNMM544 |
| ISO Insert Code | TNMM270616 |
| Relief Angle | 0.000 |
| Insert Style | TNMM |
| Corner Radius (mm) | 1.60 |
| Included Angle | 60.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Series | TNMM |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Chip Breaker Operation | Heavy Machining |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.3500 |
| Maximum Depth of Cut (mm) | 13.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 27.50 |
| Manufacturers Catalog Number | TNMM270616-HU7 WPP30G |
| Chip Breaker | HU7 |
| Width (mm - 2 Decimals) | 27.50 |
| ANSI Size Code | 544 |
| ISO Size Code | 270616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 27 |
| Country of Origin | Germany |
