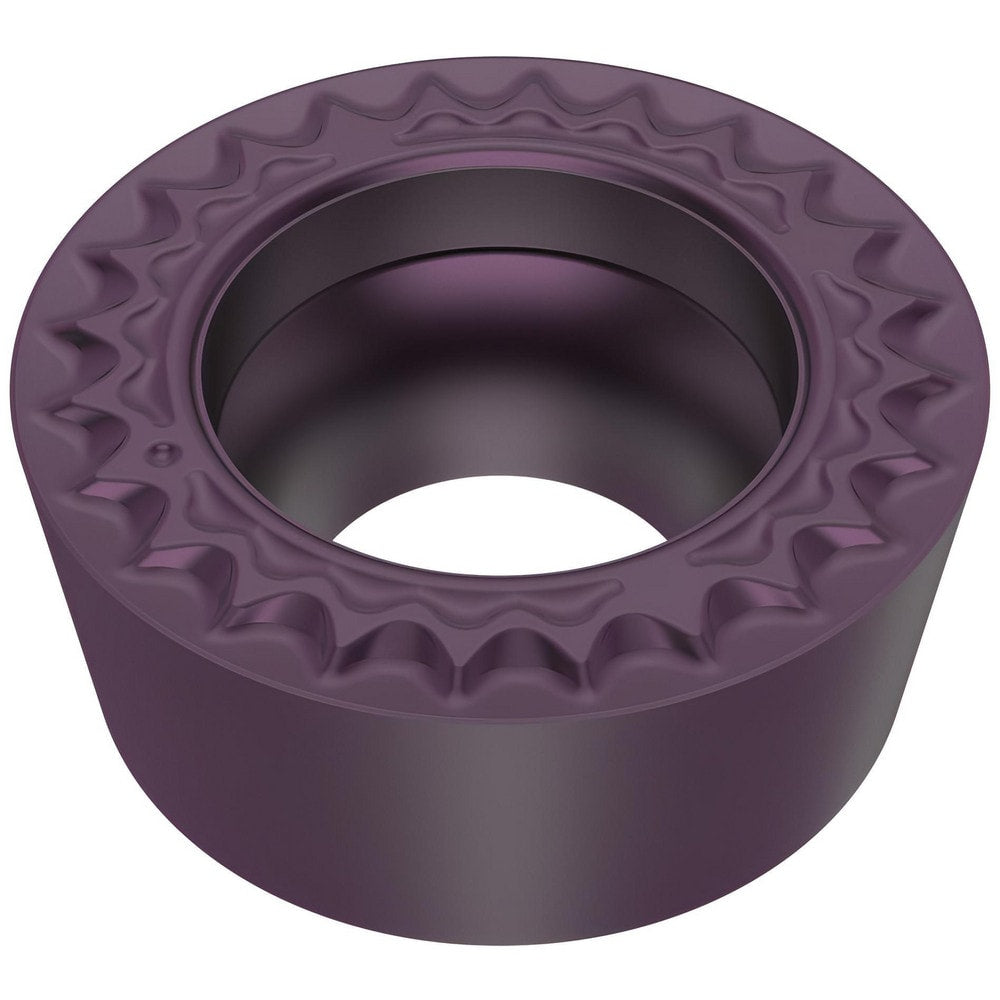

Turning Insert: RCGT1606M0-MF2 TS2050, Carbide
Item #: 82878901
Brand: Seco
Model #: 10084040
Product Specifications
| ANSI Insert Code | RCGT1606M0 |
| ISO Insert Code | RCGT1606M0 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Corner Radius (Decimal Inch) | 0.3150 |
| Included Angle | 360 |
| Manufacturer Grade | TS2050 |
| Coating/Finish | TiAlSiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6299 |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Hard Material; Stainless Steel |
| Secondary Workpiece Material Code | H; M |
| Iso Code | RCGT1606M0-MF2 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 10084040 |
| Material Grade | H05-H15; S05-S15 |
| Lead Angle | 360 |
| Coating Classification | PVD |
| Chip Breaker | MF2 |
| Cutting Edge Style | Honed |
| Industry Standard Number | RCGT1606M0-MF2 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning |
| ANSI Size Code | 1606M0 |
| ISO Size Code | 1606M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1606 |
| Country of Origin | Sweden |
