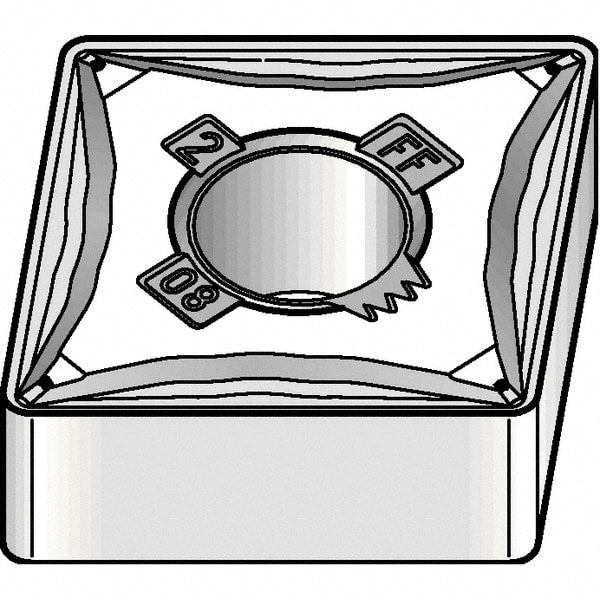

Turning Insert: CNMG321FF KCU10B, Carbide
Item #: 81727950
Brand: Kennametal
Model #: 7093227
Product Specifications
| ANSI Insert Code | CNMG321 |
| ISO Insert Code | CNMG090304 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | KCU10B |
| Coating/Finish | AlTiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Width (Inch) | 1/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; K; M; N |
| Chip Breaker | FF |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 321 |
| Country of Origin | China |
