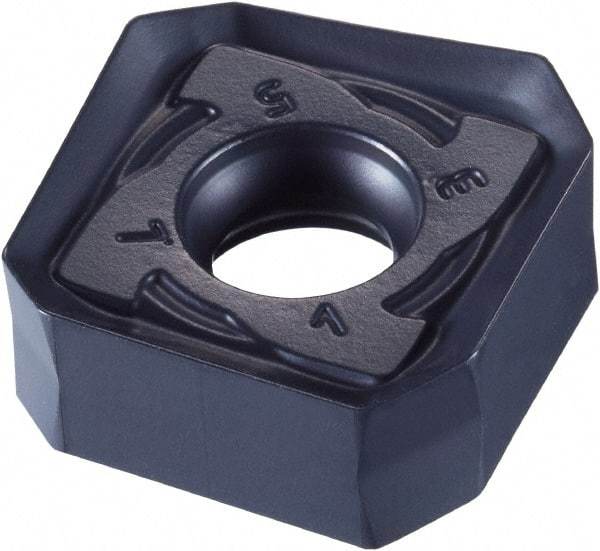

OSG - SNKU1505 SM Grade XC5040 Carbide Milling Insert - TiN/TiB2 Finish, 7.18mm Thick, 5/8" Inscribed Circle, 1mm Corner Radius
Item #: 39403761
Brand: OSG
Model #: 52700006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNKU |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | XC5040 |
| Coating | TiN/TiB2 |
| Width (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (mm) | 7.18 |
| Corner Radius (mm) | 1.00 |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | SM |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
