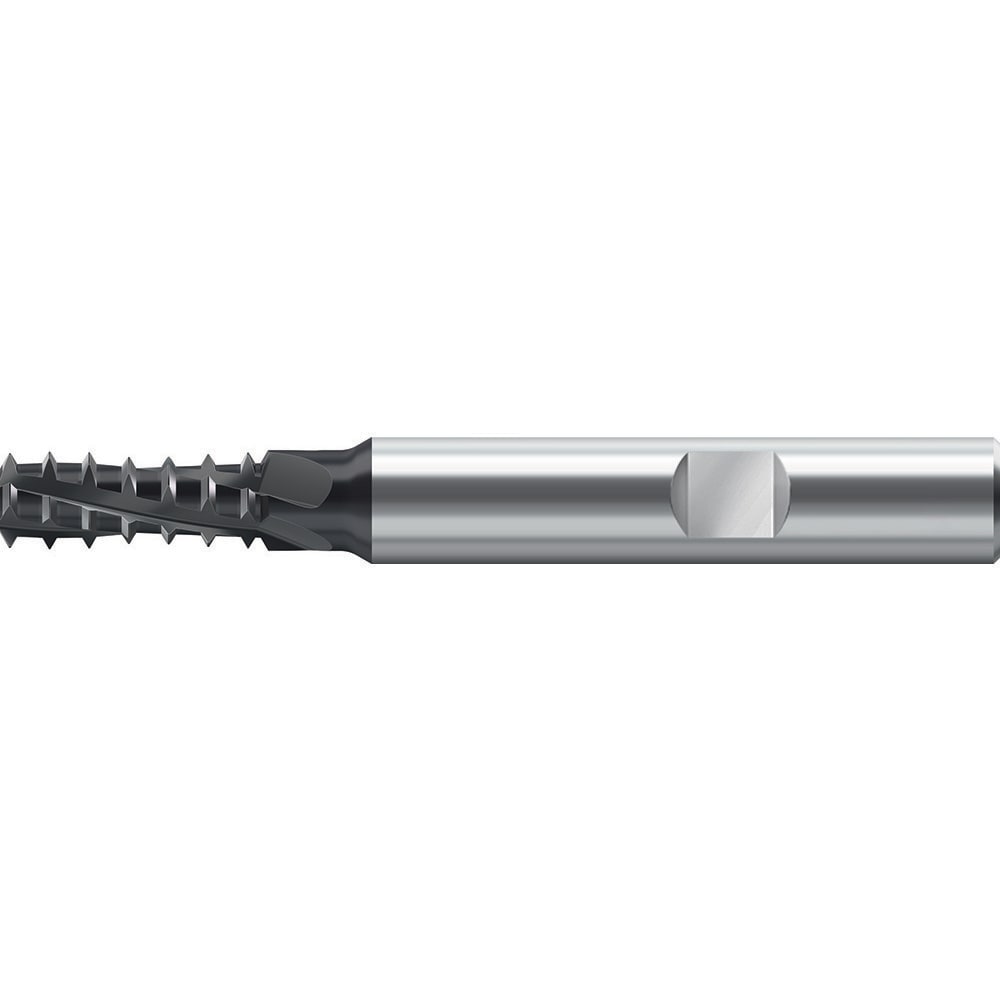

Helical Flute Thread Mill: 7/16-20, Internal, 5 Flute, 10.0000 mm Shank Dia, Solid Carbide
Item #: 53442083
Brand: Walter-Prototyp
Model #: 8117677
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16-20 |
| Thread Type | Internal |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 9.20 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3622 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9000 |
| Length of Cut (mm) | 22.8600 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Overall Length (mm) | 72.0000 |
| Overall Length (Decimal Inch) | 2.8346 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Series | TC620-UNF-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 20 |
| UNSPSC Code | 23242117 |
