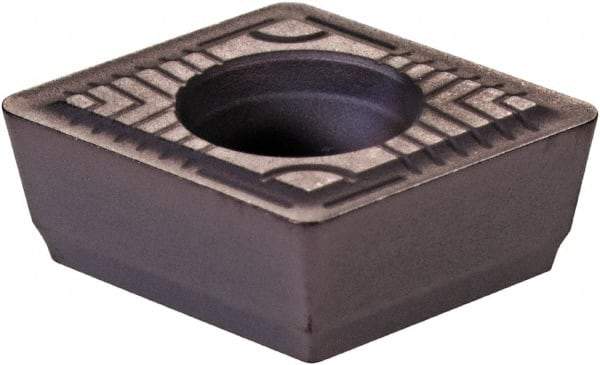

Hertel - HPMT094508 GP Grade HP130D Carbide Indexable Drill Insert - TiAlN/AlCrN Finish, Diamond, 0.378" Inscribed Circle
Item #: 39270558
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HPMT |
| Insert Size | 094508 |
| Material | Carbide |
| Manufacturer's Grade | HP130D |
| Inscribed Circle (mm) | 9.60 |
| Inscribed Circle (Inch) | 0.3780 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness (mm) | 4.50 |
| Thickness (Inch) | 0.1772 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 0.0315 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Diamond |
| Width (Decimal Inch) | 0.3780 |
| Width (mm) | 9.60 |
| Length (Decimal Inch) | 0.3780 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Inch) | 0.1575 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Coating | TiAlN/AlCrN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | GP |
