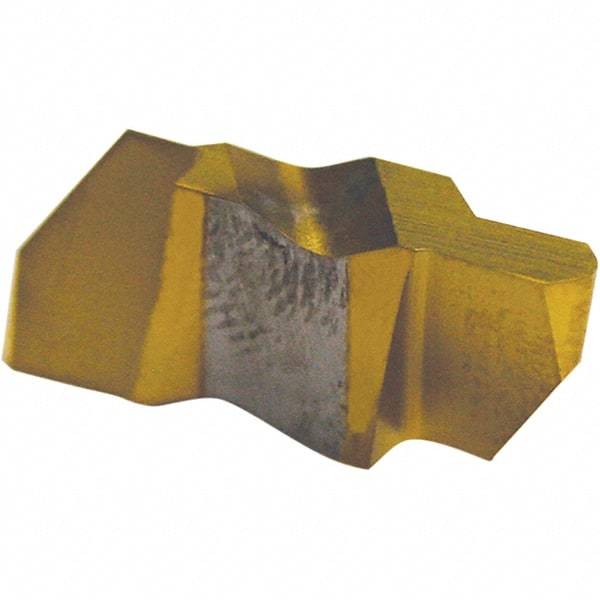

Tool-Flo - 3156FLU Grade GP50C, 3.96mm Cutting Width Carbide Grooving Insert - 3/16" Max Depth of Cut, Left Hand, 0.047" Corner Radius, TiN Finish
Item #: 39243985
Brand: Tool-Flo
Model #: 623256LN4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLU |
| Insert Size | 3156 |
| Material | Carbide |
| Cutting Width (mm) | 3.96 |
| Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Depth of Cut (Decimal Inch) | 0.1880 |
| Manufacturer's Grade | GP50C |
| Coating | TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLU-3156L |
| Insert Thickness (Decimal Inch) | 0.1950 |
