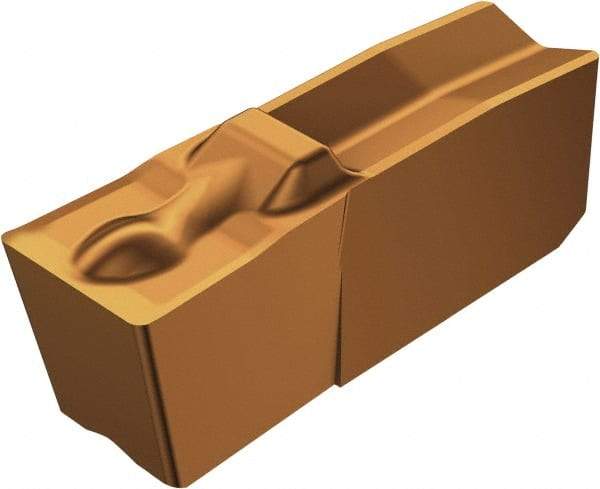

Sandvik Coromant - 18520N151.3 4G Grade 1125, 1.85mm Cutting Width Carbide Grooving Insert - Neutral, 0.1mm Corner Radius, TiAlN Finish
Item #: 39149331
Brand: Sandvik Coromant
Model #: 5736888
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 18520 |
| Material | Carbide |
| Cutting Width (mm) | 1.85 |
| Cutting Width (Decimal Inch) | 0.0728 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 20 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Series | T-Max Q-Cut |
| ISO Number | N1513185204G1125 |
| Manufacturers Catalog Number | 5736888 |
| Insert Thickness (Decimal Inch) | 0.1882 |
| Insert Thickness (mm) | 4.7800 |
