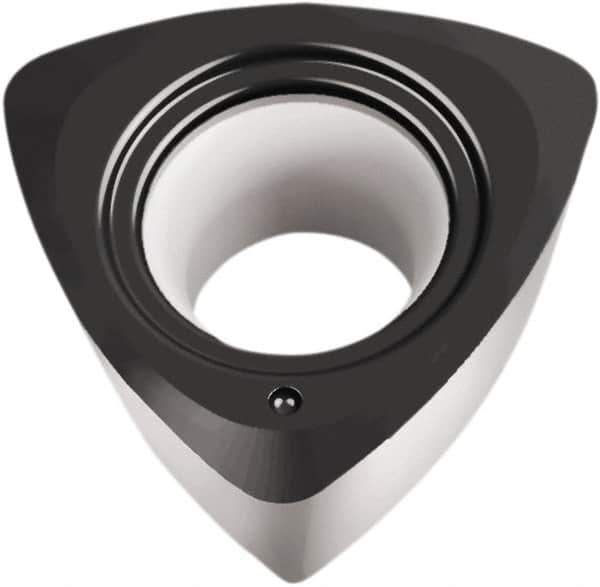

Walter - P26337R25 None Grade WSP45S Carbide Milling Insert - TiAlN/Al2O3 Finish, 0.219" Thick, 13mm Inscribed Circle, 2.01mm Corner Radius
Item #: 39118278
Brand: Walter
Model #: 6427914
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P26337 |
| Insert Size | R25 |
| Material | Carbide |
| Manufacturer's Grade | WSP45S |
| Coating | TiAlN/Al2O3 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.01 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Triangle |
| Insert Hand | Neutral |
| Chipbreaker | None |
