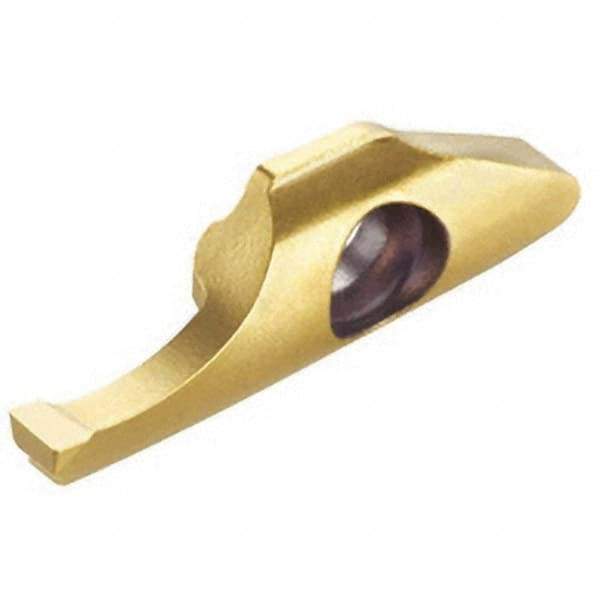

Iscar - 15-3.00-1.50MIFR Grade IC908, 3mm Cutting Width Carbide Grooving Insert - 15mm Max Depth of Cut, Right Hand, 1.5mm Corner Radius, TiAlN Finish
Item #: 39053434
Brand: Iscar
Model #: 3300277
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MIFR |
| Insert Size | 15-3.00-1.50 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | MinCut |
| ISO Number | MIFR 15-3.00-1.50 IC908 |
| Manufacturers Catalog Number | 3300277 |
| Overall Width (mm) | 5.85 |
| Overall Width (Decimal Inch) | 0.2300 |
| Insert Thickness (Decimal Inch) | 0.3540 |
| Insert Thickness (mm) | 9 |
