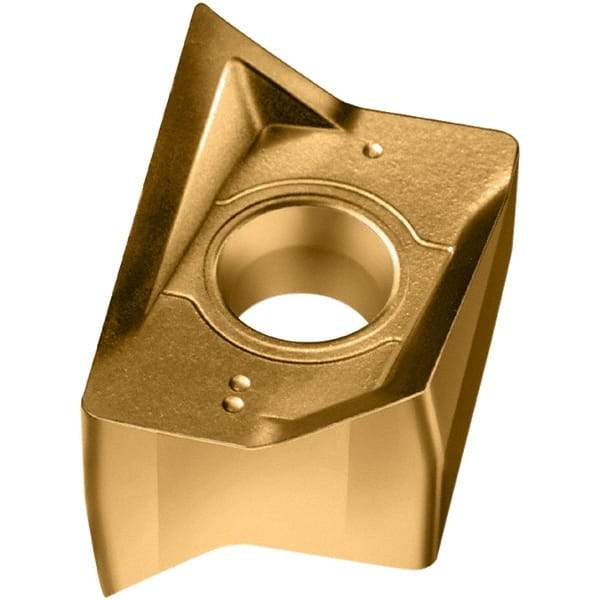

Walter - L55 Grade WSM35S Milling Insert - 7.74mm Thick, 1.2mm Corner Radius
Item #: 39026562
Brand: Walter
Model #: 7058511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Width (mm) | 11.00 |
| Width (Decimal Inch) | 0.4330 |
| Length (mm) | 13.70 |
| Length (Decimal Inch) | 0.5390 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 7.74 |
| Thickness (Decimal Inch) | 0.3050 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | L55 |
| Maximum Depth of Cut (mm) | 13.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5390 |
| Manufacturers Catalog Number | LNGX130712R-L55 WSM35S |
