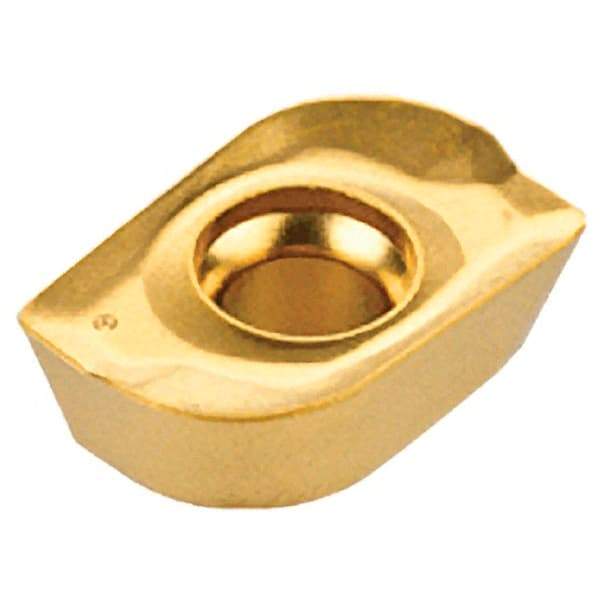

Iscar - HM90 ADKT1505 PDR Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 5.85mm Thick, 0.8mm Corner Radius
Item #: 39002704
Brand: Iscar
Model #: 3309399
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Width (mm) | 9.65 |
| Width (Decimal Inch) | 0.3800 |
| Length (mm) | 16.18 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (mm) | 5.85 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Hexagon |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| Manufacturers Catalog Number | HM90 ADKT 1505PDR |
| ISO Number | HM90 ADKT 1505PDR |
| ANSI Number | HM90 ADKT 1505PDR |
