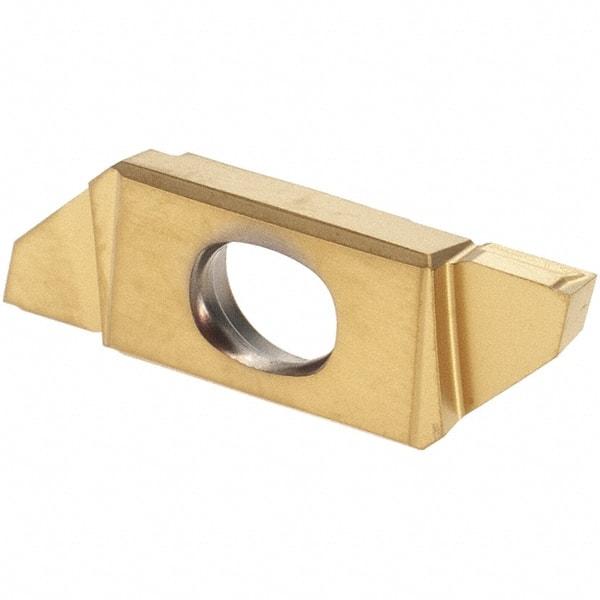

Iscar - SCIR22-200 Grade IC1008, 2mm Cutting Width Carbide Cutoff Insert - Right Hand Lead Angle, 0.08mm Corner Radius, TiAlN/TiN Finish
Item #: 38677225
Brand: Iscar
Model #: 6410075
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SCIR |
| Insert Size | 22-200 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 60 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Corner Radius (mm) | 0.08 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1180 |
| Manufacturers Catalog Number | SCIR 22-200NX080 |
