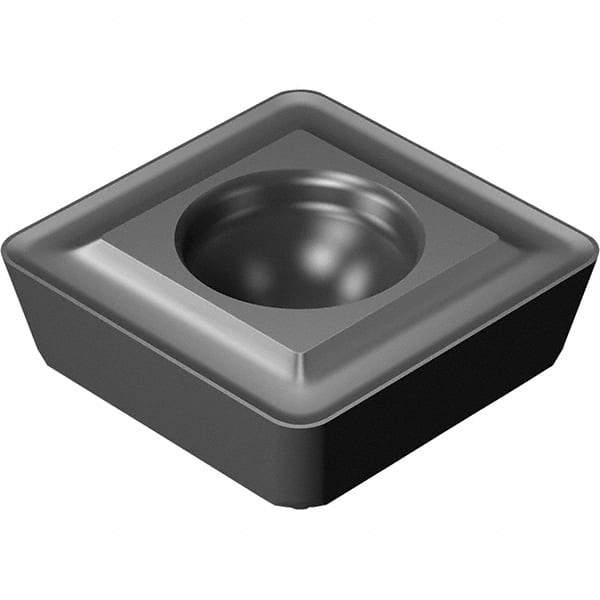

Sandvik Coromant - 8800805 MS Grade N124 Carbide Indexable Drill Insert - Diamond like carbon Finish, Square, 15.45mm Inscribed Circle
Item #: 38390985
Brand: Sandvik Coromant
Model #: 7362187
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 0805 |
| Material | Carbide |
| Manufacturer's Grade | N124 |
| Inscribed Circle (mm) | 15.45 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (mm) | 1.00 |
| Shape | Square |
| Length (mm) | 47.0000 |
| Length (Decimal Inch) | 1.8504 |
| Primary Workpiece Material | N |
| Coating | Diamond like carbon |
| Coating Process | CVD |
| Chipbreaker | MS |
