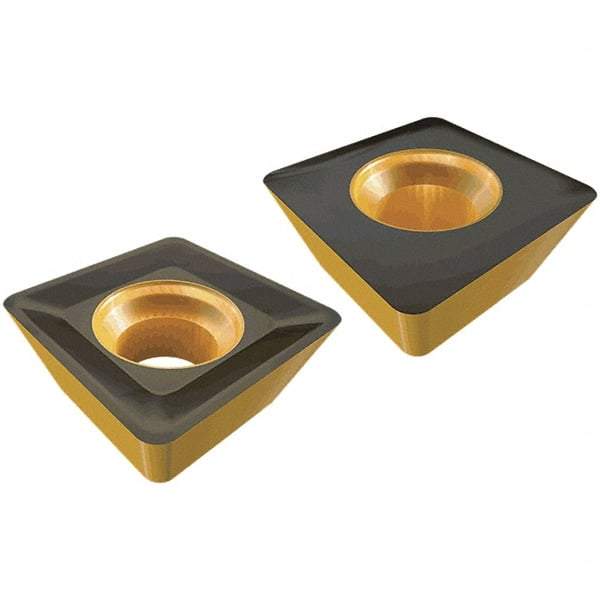

Iscar - SDHW100408 TN Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 4.5mm Thick, 0.8mm Corner Radius
Item #: 38149456
Brand: Iscar
Model #: 5683371
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDHW |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Length (mm) | 10.00 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | TN |
| Manufacturers Catalog Number | SDHW 100408-TN |
| ISO Number | SDHW 100408-TN |
| ANSI Number | SDHW 100408-TN |
