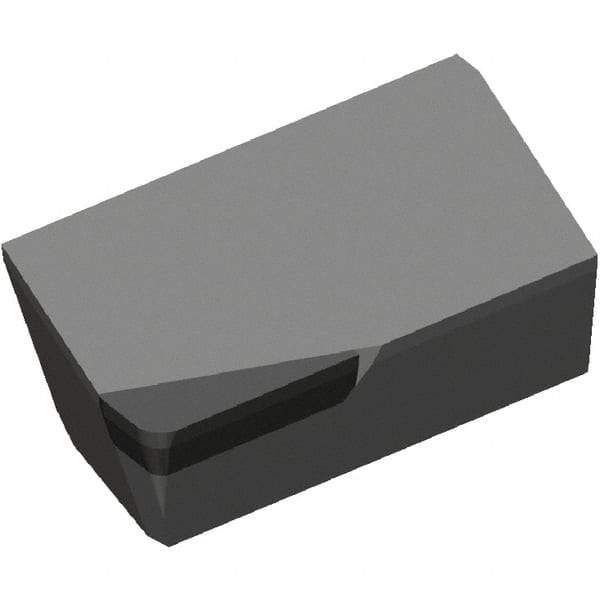

Kennametal - KSDR100093 Grade KD1425 Diamond Tipped Milling Insert - Uncoated, 0.258" Thick, 2.4mm Corner Radius
Item #: 38141933
Brand: Kennametal
Model #: 6042989
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | KSDR |
| Insert Size | 100093 |
| Material | Diamond Tipped |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2580 |
| Corner Radius (Decimal Inch) | 0.0930 |
| Corner Radius (mm) | 2.40 |
| Relief Angle | 10.000 |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Irregular |
| Insert Hand | Right Hand |
| ISO Number | KSDR100093E1W4S |
