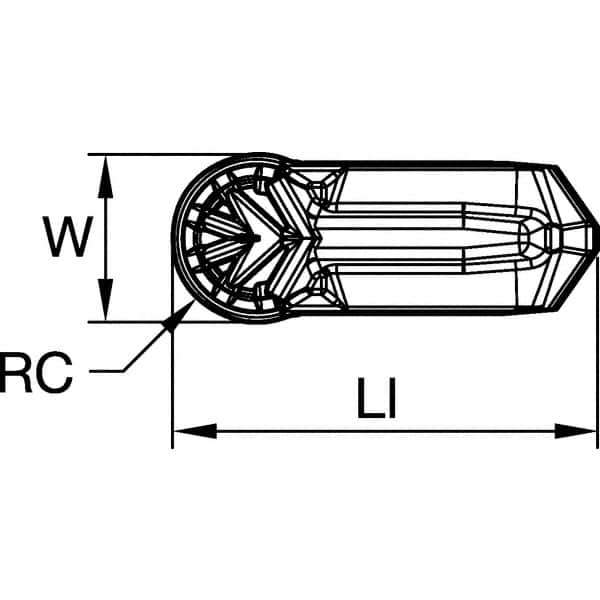

Kennametal - 3ER-U GUN Grade KCK20B, 1/8" Cutting Width Carbide Grooving Insert - 2.3mm Max Depth of Cut, Neutral, 1.56mm Corner Radius, Al2O3 Finish
Item #: 37951563
Brand: Kennametal
Model #: 6017391
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ER-U |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 2.30 |
| Manufacturer's Grade | KCK20B |
| Coating | Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.00 |
| Insert Seat Size | 3 |
| Chipbreaker | GUN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 1.56 |
| Coating Process | CVD |
| Overall Length (mm) | 9.60 |
| Series | Beyond Evolution |
| Rake Angle | 20 |
| Overall Width (mm) | 2.58 |
| Insert Thickness (mm) | 4 |
