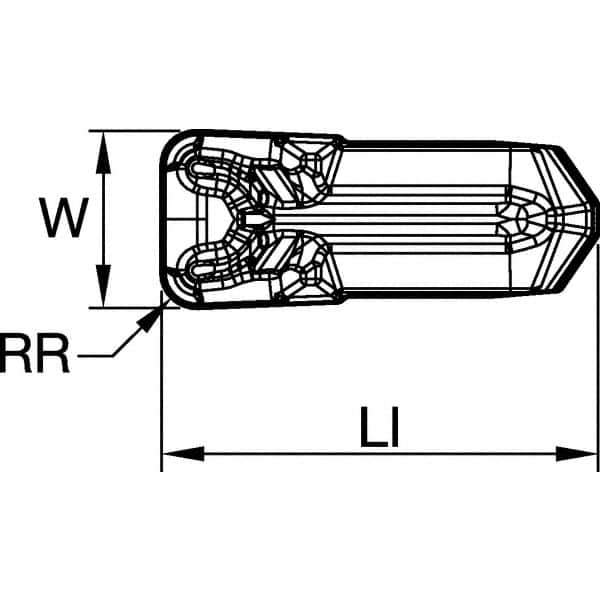

Kennametal - 2EG-U GUN Grade KCK20B, 2.1mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, Al2O3 Finish
Item #: 37951530
Brand: Kennametal
Model #: 6017358
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-U |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 2.10 |
| Maximum Depth of Cut (mm) | 1.80 |
| Manufacturer's Grade | KCK20B |
| Coating | Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (Inch) | 1/8 |
| Cutting Height (Decimal Inch) | 0.1250 |
| Relief Angle | 2.25 |
| Insert Seat Size | 2 |
| Chipbreaker | GUN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.20 |
| Coating Process | CVD |
| Overall Length (mm) | 8.97 |
| Series | Beyond Evolution |
| Rake Angle | 10 |
| Overall Width (mm) | 1.60 |
| Insert Thickness (mm) | 3.2100 |
