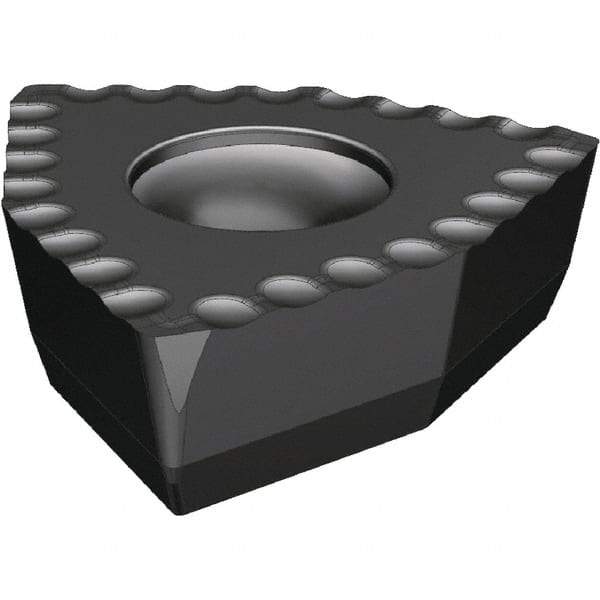

Kennametal - DFT05T308 DS Grade KCU40 Carbide Indexable Drill Insert - TiAlN Finish, Trigon, 3.4mm Inscribed Circle
Item #: 37892486
Brand: Kennametal
Model #: 6025826
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | DFT |
| Insert Size | 05T308 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (mm) | 3.40 |
| Thickness (mm) | 3.75 |
| Corner Radius (mm) | 0.80 |
| Shape | Trigon |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Included Angle | 84 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | DS |
