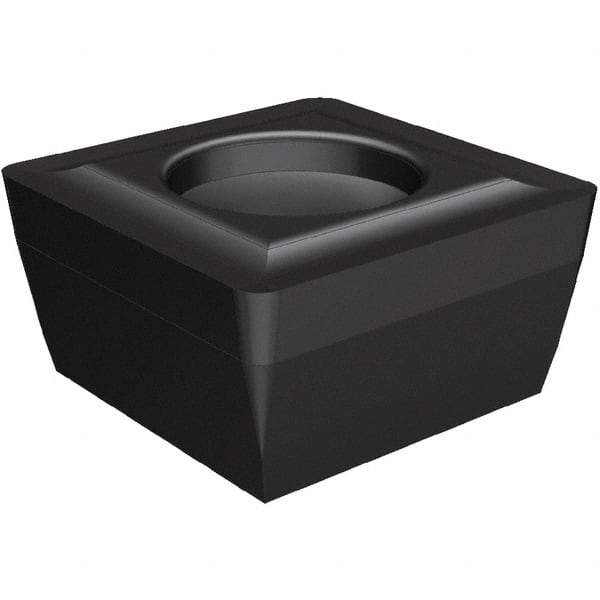

Kennametal - SP..X..050204 Grade KCU40 Carbide Indexable Drill Insert - TiAlN Finish, Square, 2.25mm Inscribed Circle
Item #: 37892296
Brand: Kennametal
Model #: 6025822
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SP..X.. |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (mm) | 2.25 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (mm) | 0.40 |
| Shape | Square |
| Width (Decimal Inch) | 0.2130 |
| Width (mm) | 5.42 |
| Length (mm) | 5.43 |
| Hole Diameter (mm) | 2.25 |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
