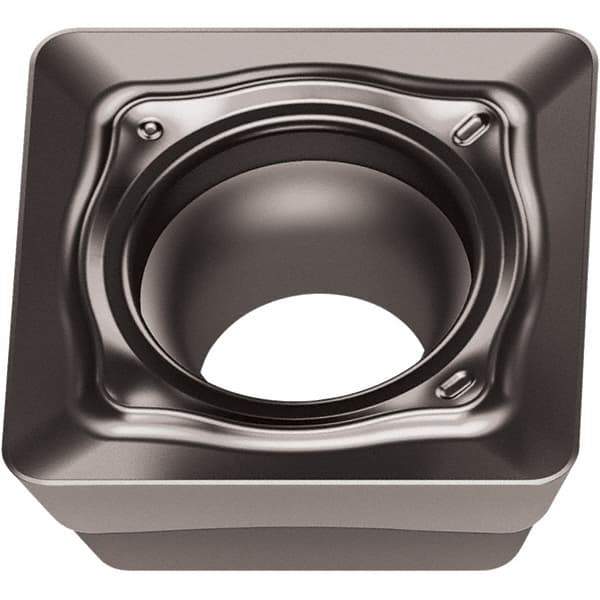

Walter - D51 Grade WKP35S Milling Insert - 2.78mm Thick, 6.35mm Inscribed Circle, 0.4mm Corner Radius
Item #: 37881992
Brand: Walter
Model #: 6795983
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35S |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.78 |
| Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | D51 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturers Catalog Number | SDMT06T204-D51 WKP35S |
