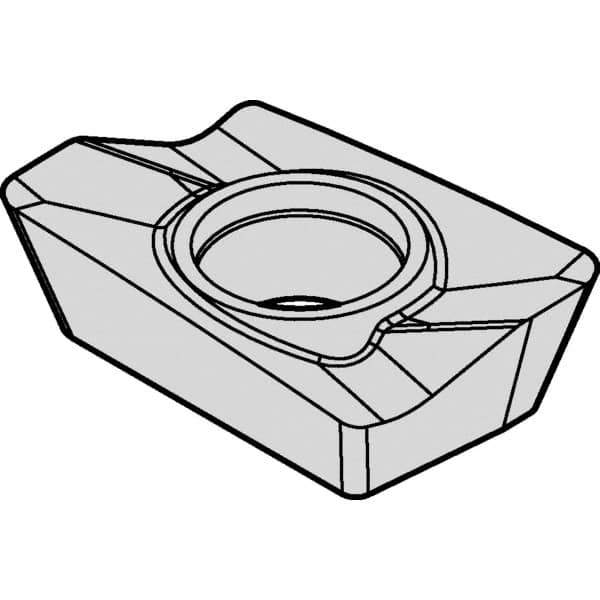

Kennametal - ADCT2328 LD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 4.5mm Thick, 10mm Inscribed Circle
Item #: 37857877
Brand: Kennametal
Model #: 6172431
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADCT |
| Insert Size | 2328 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 10.00 |
| Length (Inch) | 39/64 |
| Length (Decimal Inch) | 0.6094 |
| Inscribed Circle (mm) | 10.00 |
| Thickness (mm) | 4.50 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | LD |
| ISO Number | ADCT1545PDERLD |
| ANSI Number | ADCT2328PDER5LD |
