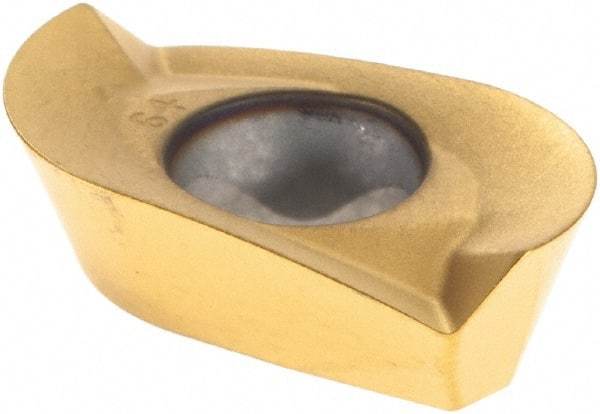

Kennametal - EP1864 GD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 5.5mm Thick, 6.35mm Corner Radius
Item #: 37857794
Brand: Kennametal
Model #: 6172412
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1864 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 10.70 |
| Width (Decimal Inch) | 0.4220 |
| Length (mm) | 18.80 |
| Length (Decimal Inch) | 0.7344 |
| Thickness (mm) | 5.50 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (mm) | 6.35 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | EDPT180564PDERGD |
| ANSI Number | EP1864E |
