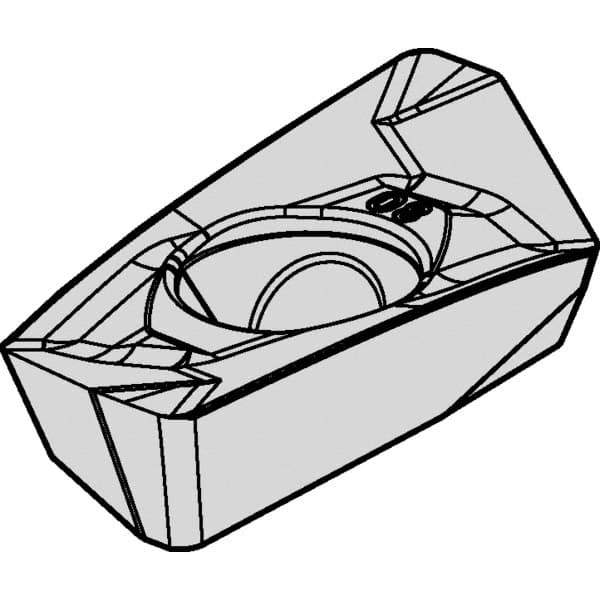

Kennametal - EP1832 GD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 5.5mm Thick, 3.18mm Corner Radius
Item #: 37857679
Brand: Kennametal
Model #: 6172391
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1832 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (Inch) | 27/64 |
| Width (Decimal Inch) | 0.4219 |
| Length (Inch) | 55/64 |
| Length (Decimal Inch) | 0.8594 |
| Thickness (mm) | 5.50 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 3.18 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | EDPT180532PDSRGD |
| ANSI Number | EP1832S |
