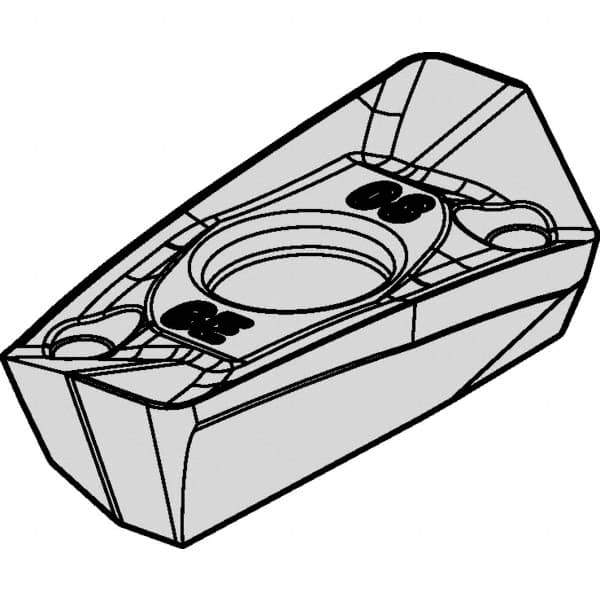

Kennametal - EP1416 GE Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 4.5mm Thick
Item #: 37857604
Brand: Kennametal
Model #: 6172194
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1416 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 8.00 |
| Length (Inch) | 11/16 |
| Length (Decimal Inch) | 0.6875 |
| Thickness (mm) | 4.50 |
| Hole Diameter (mm) | 3.40 |
| Relief Angle | 15.000 |
| Rake Angle | 14 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| ISO Number | EDPT140416PDSRGE |
| ANSI Number | EP1416SGE |
