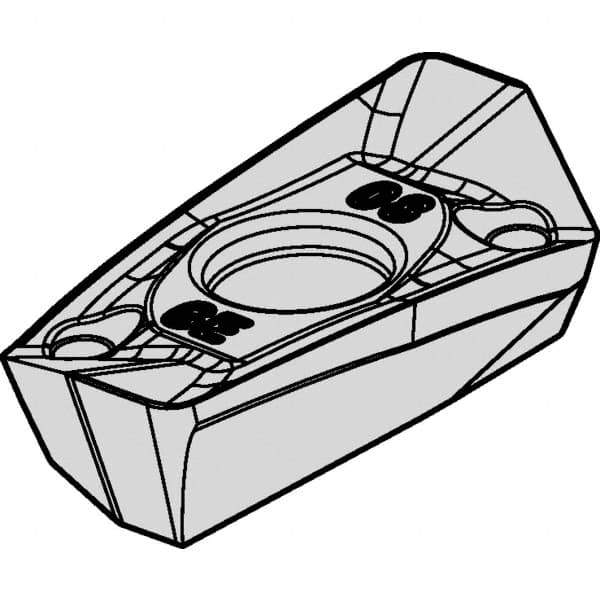

Kennametal - EP1420 HD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 4.5mm Thick, 2mm Corner Radius
Item #: 37857505
Brand: Kennametal
Model #: 6172125
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1420 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (Inch) | 21/64 |
| Width (Decimal Inch) | 0.3281 |
| Length (Inch) | 11/16 |
| Length (Decimal Inch) | 0.6875 |
| Thickness (mm) | 4.50 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 3.40 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HD |
| ISO Number | EDPT140420PDERHD |
| ANSI Number | EP1420EHD |
