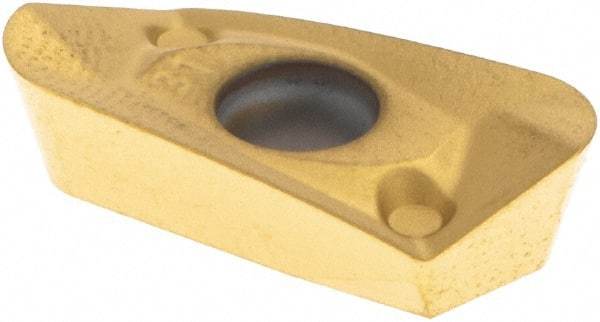

Kennametal - EC1431 GD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 4.5mm Thick
Item #: 37857471
Brand: Kennametal
Model #: 6171591
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1431 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 8.50 |
| Length (mm) | 17.50 |
| Thickness (mm) | 4.50 |
| Hole Diameter (mm) | 3.40 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | EDCT140431PDERGD |
| ANSI Number | EC1431EGD |
