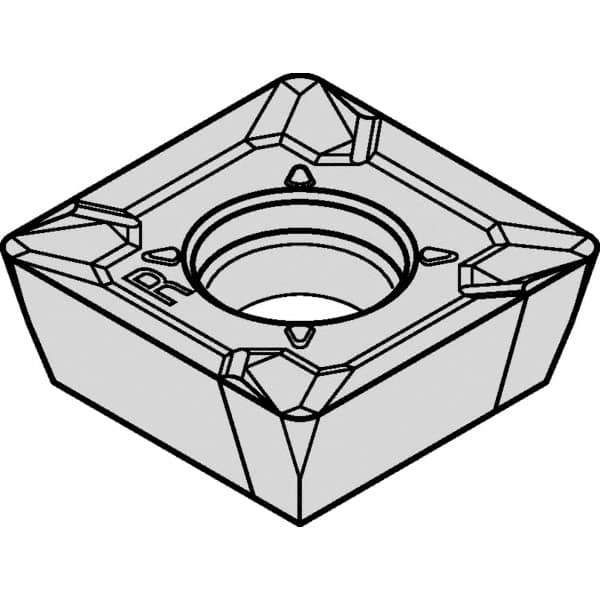

Kennametal - SDCT438 LD2 Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 3.18mm Corner Radius
Item #: 37857315
Brand: Kennametal
Model #: 6168017
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDCT |
| Insert Size | 438 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 3.18 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | LD2 |
| ISO Number | SDCT120432ENLD2 |
| ANSI Number | SDCT438ENLD2 |
