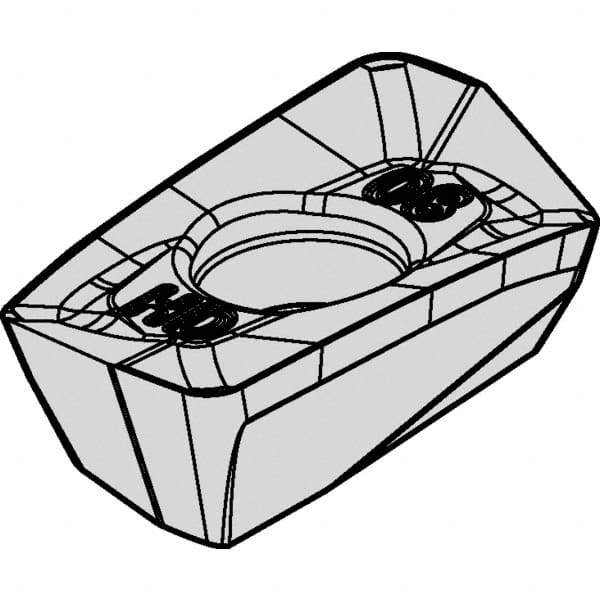

Kennametal - EP1020 HD Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 9/64" Thick, 2mm Corner Radius
Item #: 37856754
Brand: Kennametal
Model #: 6127889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1020 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Inch) | 17/64 |
| Width (Decimal Inch) | 0.2656 |
| Length (mm) | 12.00 |
| Thickness (Inch) | 9/64 |
| Thickness (Decimal Inch) | 0.1406 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 3.00 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HD |
| ISO Number | EDPT10T320PDERHD |
| ANSI Number | EP1020EHD |
