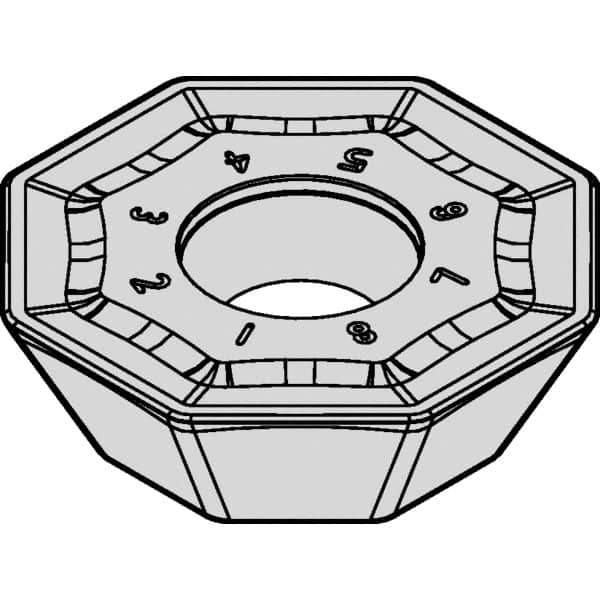

Kennametal - OFKT64 HB Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 6mm Thick, 47/64" Inscribed Circle
Item #: 37856291
Brand: Kennametal
Model #: 6177930
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFKT |
| Insert Size | 64 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Length (mm) | 7.50 |
| Inscribed Circle (Inch) | 47/64 |
| Inscribed Circle (Decimal Inch) | 0.7344 |
| Thickness (mm) | 6.00 |
| Hole Diameter (mm) | 5.50 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | HB |
| ISO Number | OFKT07L6AFSNHB |
| ANSI Number | OFKT64AFSN6HB |
