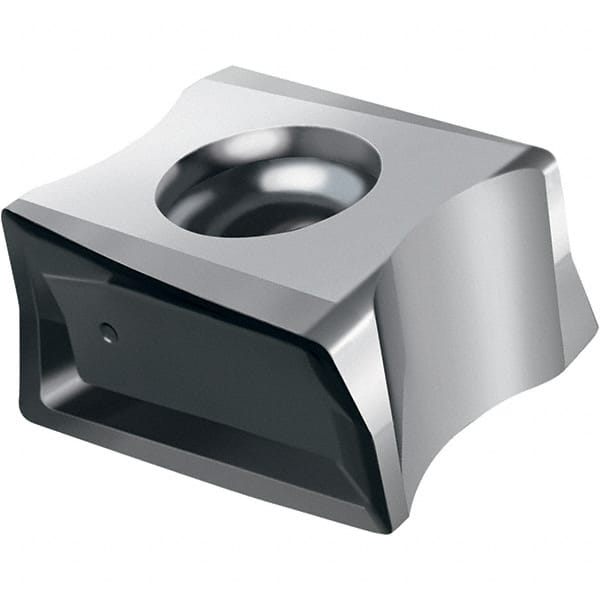

Walter - LNHX120604R-L65TWSM45X Milling Insert
Item #: 37847878
Brand: Walter
Model #: 6948599
Product Specifications
| Manufacturer's Grade | WSM45X |
| Width (mm) | 11.00 |
| Width (Decimal Inch) | 0.4330 |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 6.80 |
| Thickness (Decimal Inch) | 0.2680 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | L65T |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | LNHX120604R-L65T WSM45X |
