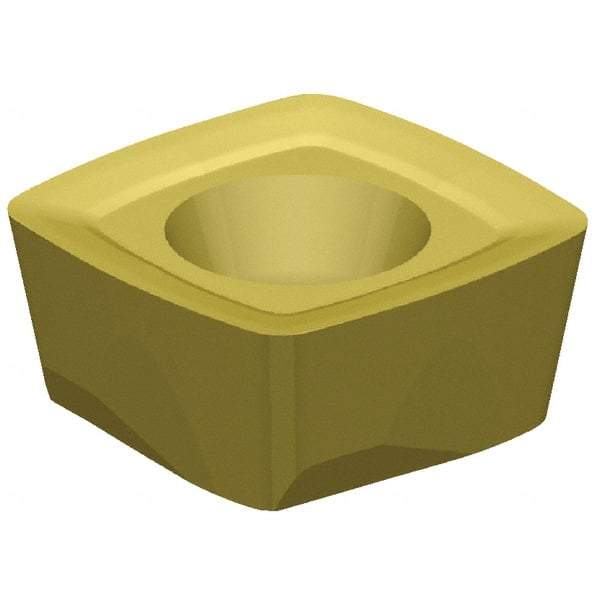

Kennametal - XPNT06308 Grade SC6525 Carbide Milling Insert - Al2O3 Finish, 1/8" Thick, 7mm Inscribed Circle, 1/32" Corner Radius
Item #: 37823895
Brand: Kennametal
Model #: 5655265
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPNT |
| Insert Size | 06308 |
| Material | Carbide |
| Manufacturer's Grade | SC6525 |
| Coating | Al2O3 |
| Width (mm) | 7.00 |
| Length (mm) | 7.00 |
| Inscribed Circle (mm) | 7.00 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | XPLT060308ERD41 |
