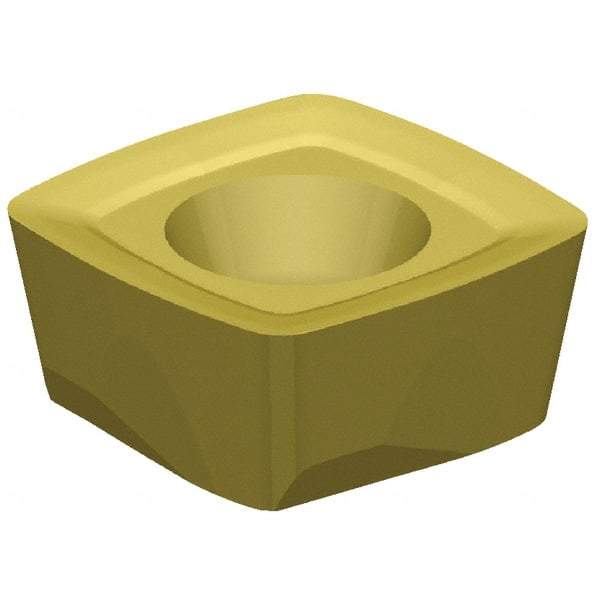

Kennametal - XPPT06308 Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 1/8" Thick, 7mm Inscribed Circle, 1/32" Corner Radius
Item #: 37823739
Brand: Kennametal
Model #: 6185769
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPPT |
| Insert Size | 06308 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 7.00 |
| Length (mm) | 7.00 |
| Inscribed Circle (mm) | 7.00 |
| Inscribed Circle (Decimal Inch) | 0.2760 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | XPLT060308ERD41 |
