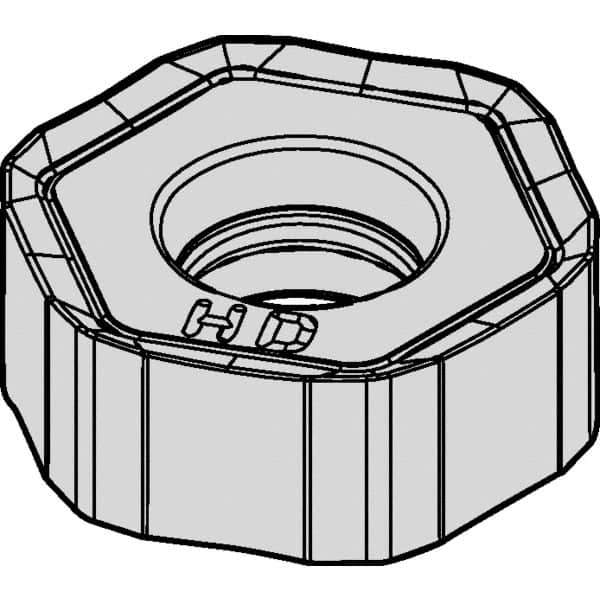

Kennametal - HNGJ43 HD Grade KC522M Carbide Milling Insert - AlTiN Finish, 11/64" Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 37823630
Brand: Kennametal
Model #: 6039811
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KC522M |
| Coating | AlTiN |
| Length (Inch) | 1/4 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Inch) | 11/64 |
| Thickness (Decimal Inch) | 0.1719 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | HD |
| Manufacturers Catalog Number | HNGJ43ANSNHD |
