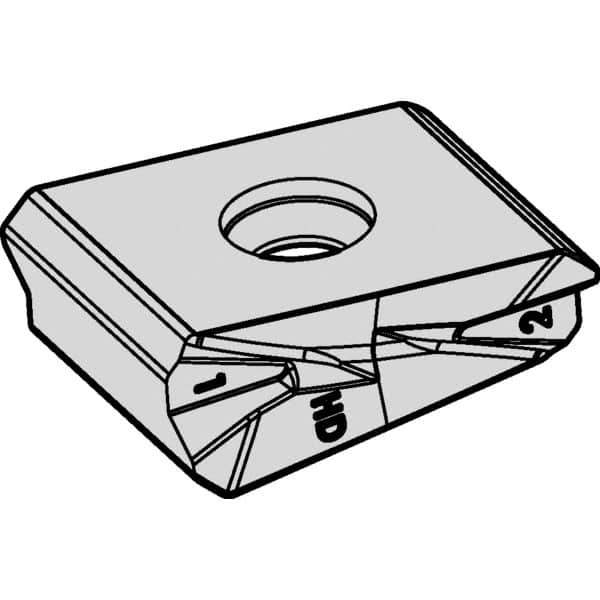

Kennametal - LNPU863 HD2 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 10mm Thick, 3/64" Corner Radius
Item #: 37823580
Brand: Kennametal
Model #: 5879816
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNPU |
| Insert Size | 863 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Width (mm) | 25.00 |
| Length (mm) | 29.00 |
| Thickness (mm) | 10.00 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Left Hand |
| Chipbreaker | HD2 |
| Manufacturers Catalog Number | LNPU863ANSLHD2 |
