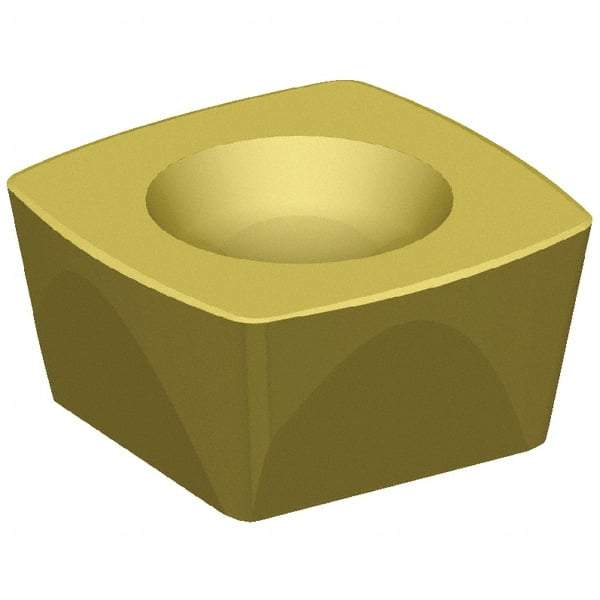

Kennametal - XDLW090408 D Grade SC6525 Carbide Milling Insert - Al2O3 Finish, 3/16" Thick, 3/8" Inscribed Circle, 1/32" Corner Radius
Item #: 37823556
Brand: Kennametal
Model #: 5655255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDLW |
| Insert Size | 090408 |
| Material | Carbide |
| Manufacturer's Grade | SC6525 |
| Coating | Al2O3 |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Length (Inch) | 3/8 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D |
| ISO Number | XDLW090408SRD |
