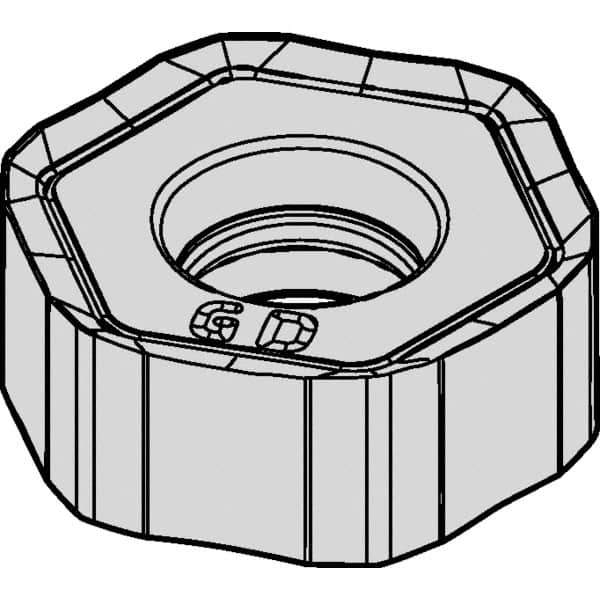

Kennametal - HNPJ43 GD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 11/64" Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 37823275
Brand: Kennametal
Model #: 6165759
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNPJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Length (Inch) | 1/4 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Inch) | 11/64 |
| Thickness (Decimal Inch) | 0.1719 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| ISO Number | HNPJ0604ANSNGD |
| ANSI Number | HNPJ43ANSNGD |
