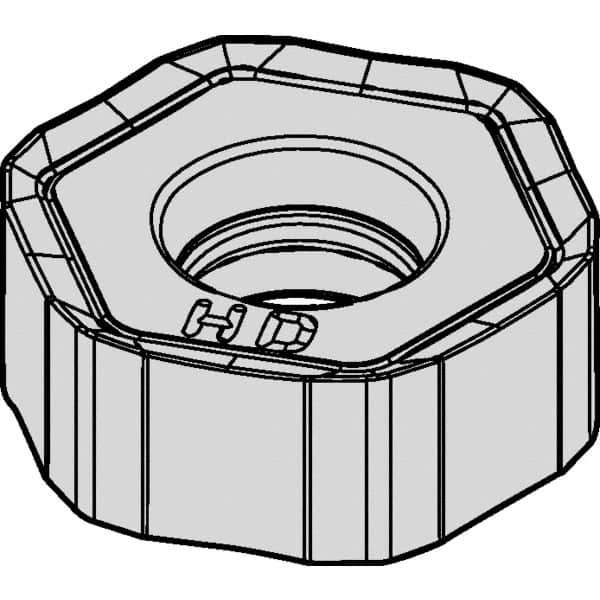

Kennametal - HNGJ43 HD Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 11/64" Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 37823200
Brand: Kennametal
Model #: 6039660
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Length (Inch) | 1/4 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Inch) | 11/64 |
| Thickness (Decimal Inch) | 0.1719 |
| Corner Radius (mm) | 1.00 |
| Coating Process | CVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | HD |
| Manufacturers Catalog Number | HNGJ43ANSNHD |
