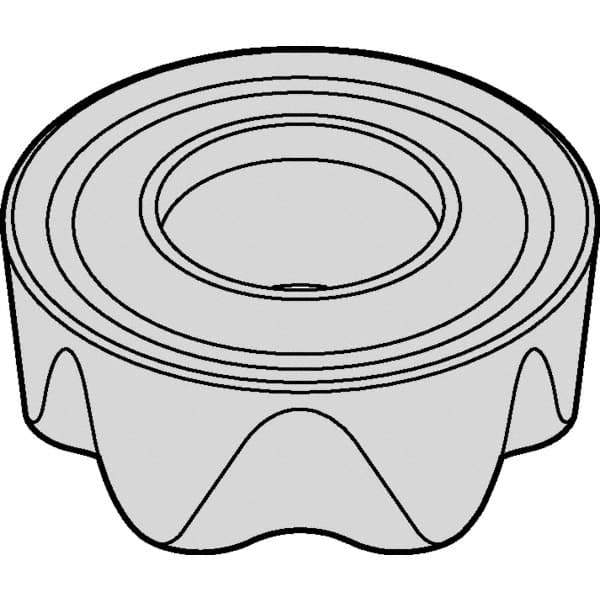

Kennametal - RCGT2006M0 HF Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 1/4" Thick, 20mm Inscribed Circle
Item #: 37823168
Brand: Kennametal
Model #: 6191357
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Inscribed Circle (mm) | 20.00 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Relief Angle | 7.000 |
| Rake Angle | 25 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | HF |
| ISO Number | RCGT2006M0SHF |
| ANSI Number | RCGT2006M0SHF |
