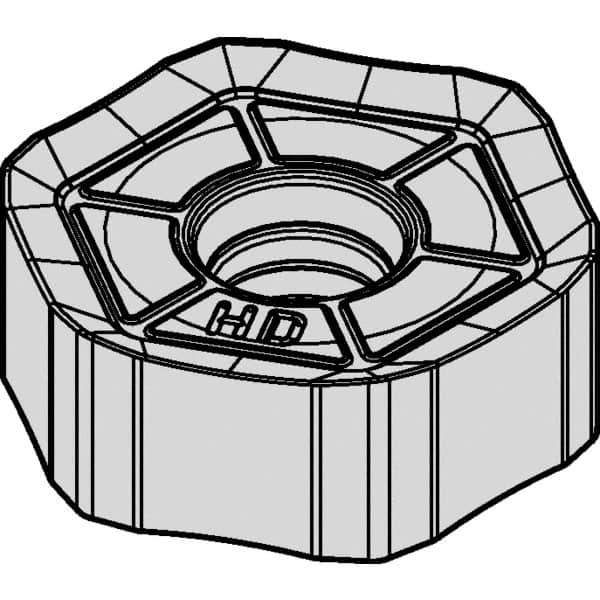

Kennametal - HNGJ535 HD Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 7/32" Thick, 5/8" Inscribed Circle, 11/64" Corner Radius
Item #: 37823127
Brand: Kennametal
Model #: 6068043
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGJ |
| Insert Size | 535 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Length (Inch) | 21/64 |
| Length (Decimal Inch) | 0.3281 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.1719 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | HD |
| ISO Number | HNGJ090543ANSNHD |
| ANSI Number | HNGJ53511ANSNHD |
