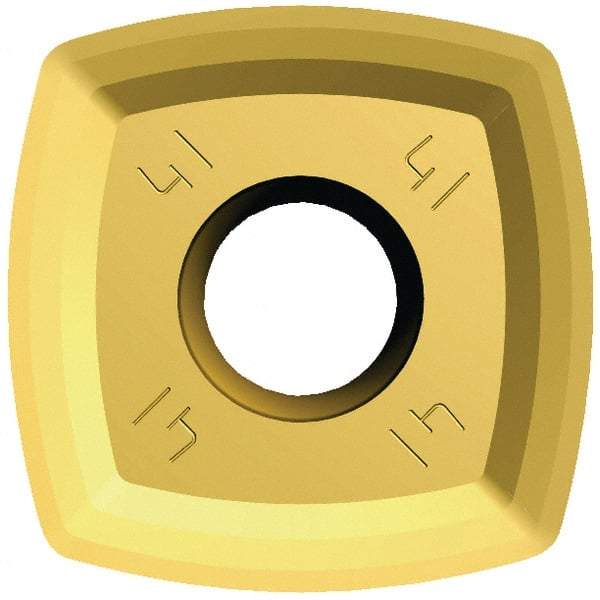

Kennametal - XEPT160516 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 7/32" Thick, 0.661" Inscribed Circle, 1/16" Corner Radius
Item #: 37823101
Brand: Kennametal
Model #: 6191558
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XEPT |
| Insert Size | 160516 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Inch) | 21/32 |
| Width (Decimal Inch) | 0.6563 |
| Length (Inch) | 21/32 |
| Length (Decimal Inch) | 0.6563 |
| Inscribed Circle (Decimal Inch) | 0.6610 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Relief Angle | 20.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | XELT160516ERD41 |
