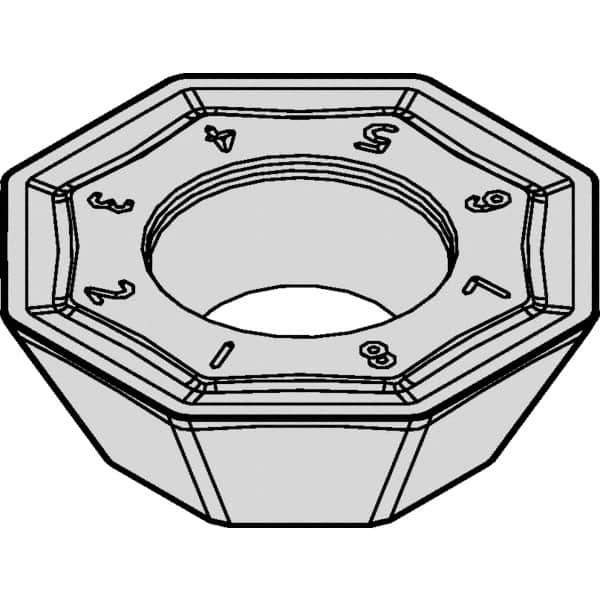

Kennametal - OFKT53 GB Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 5mm Thick, 14.7mm Inscribed Circle, 1/32" Corner Radius
Item #: 37822939
Brand: Kennametal
Model #: 6111468
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFKT |
| Insert Size | 53 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Length (mm) | 6.00 |
| Inscribed Circle (mm) | 14.70 |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Thickness (mm) | 5.00 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | GB |
| ISO Number | OFKT06L5AFENGB |
| ANSI Number | OFKT53AFEN4GB |
