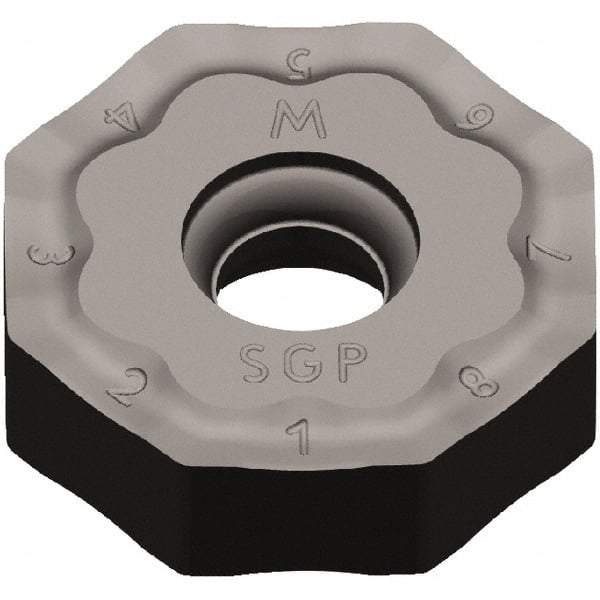

Kennametal - ONGX64 GP Grade KC514M Carbide Milling Insert - TiAlN Finish, 15/64" Thick, 20mm Inscribed Circle, 1/32" Corner Radius
Item #: 37822814
Brand: Kennametal
Model #: 6001316
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONGX |
| Insert Size | 64 |
| Material | Carbide |
| Manufacturer's Grade | KC514M |
| Coating | TiAlN |
| Length (Inch) | 21/64 |
| Length (Decimal Inch) | 0.3281 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (Inch) | 15/64 |
| Thickness (Decimal Inch) | 0.2344 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Rake Angle | 10 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | GP |
| Manufacturers Catalog Number | ONGX64ANSNGP |
