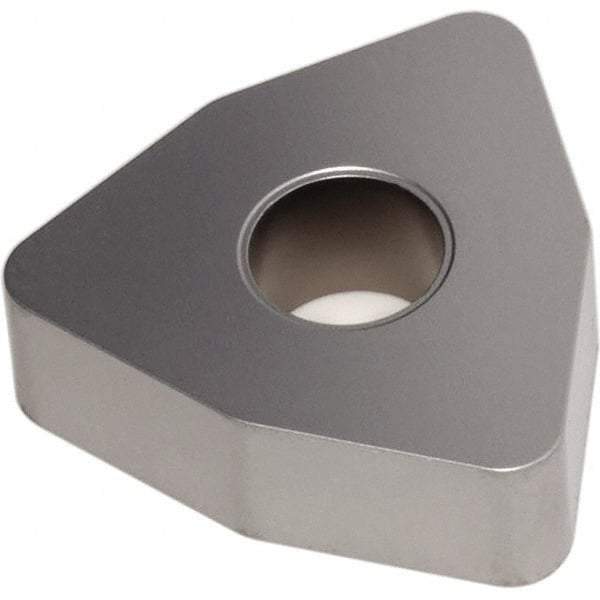

Seco - WNMA433 Flat Top Grade TK0501 Carbide Turning Insert - Ti(C/N)/Al2O3/Cr Finish, 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 37817715
Brand: Seco
Model #: 46716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMA |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 8.70 |
| Length (Decimal Inch) | 0.3425 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | TK0501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K10 |
| Chip Breaker | Flat Top |
| Insert Length (Decimal Inch) | 0.3425 |
| Hole Diameter (mm) | 5.15 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | WNMA080412 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Trigon |
