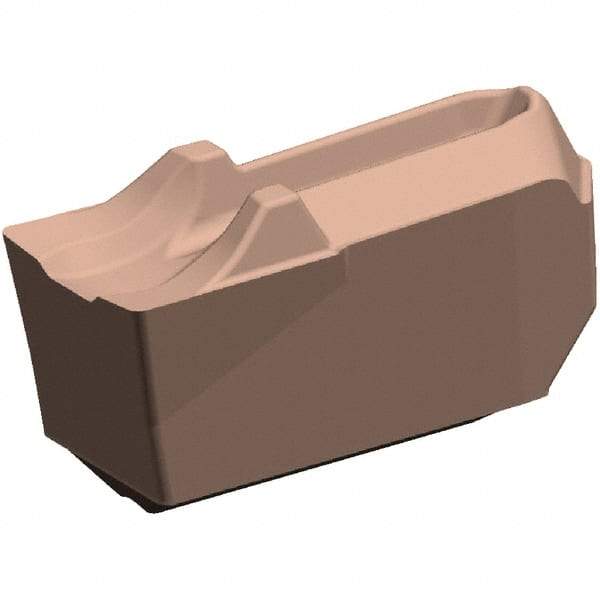

Kennametal - EC-U5 CF Grade KCM35B, 5mm Cutting Width Carbide Cutoff Insert - Neutral Lead Angle, 0.3mm Corner Radius, TiOCN Finish
Item #: 37741543
Brand: Kennametal
Model #: 6018001
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | EC-U |
| Insert Size | 5 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Manufacturer's Grade | KCM35B |
| Coating | TiOCN |
| Series | Beyond Evolution |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Multi-Use Application | Grooving; Cut-Off |
| Coating Process | CVD |
| Overall Length (mm) | 12.20 |
| Overall Length (Decimal Inch) | 0.4820 |
| Cutting Height (mm) | 4.85 |
| Cutting Height (Decimal Inch) | 0.1910 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Insert Hand | Neutral |
| Insert Seat Size | 5 |
| Overall Width (mm) | 4.58 |
| Overall Width (Decimal Inch) | 0.1800 |
