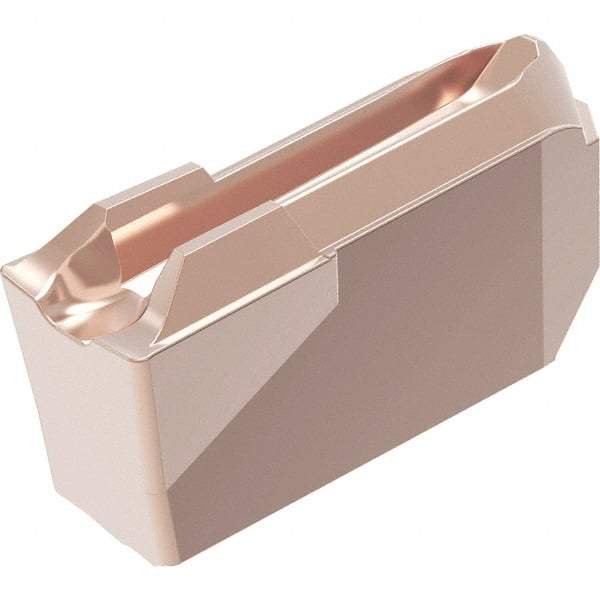

Kennametal - EC-U4 CL Grade KCM35B, 4mm Cutting Width Carbide Cutoff Insert - Neutral Lead Angle, 0.2mm Corner Radius, TiOCN Finish
Item #: 37741501
Brand: Kennametal
Model #: 6017938
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | EC-U |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | KCM35B |
| Coating | TiOCN |
| Series | Beyond Evolution |
| Relief Angle | 2 |
| Chipbreaker | CL |
| Multi-Use Application | Grooving; Cut-Off |
| Coating Process | CVD |
| Overall Length (mm) | 10.20 |
| Overall Length (Decimal Inch) | 0.4010 |
| Cutting Height (mm) | 4.43 |
| Cutting Height (Decimal Inch) | 0.1740 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Seat Size | 4 |
| Overall Width (mm) | 3.58 |
| Overall Width (Decimal Inch) | 0.1410 |
