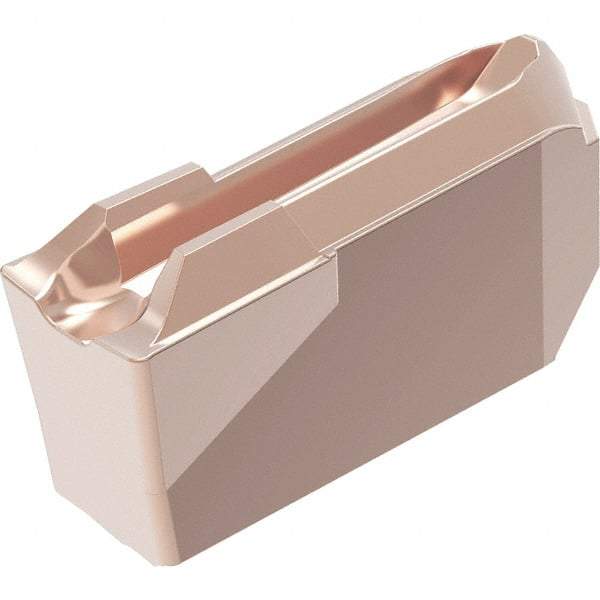

Kennametal - EC-U3 CL Grade KCM35B, 3mm Cutting Width Carbide Cutoff Insert - Left Hand Lead Angle, 0.2mm Corner Radius, TiOCN Finish
Item #: 37741402
Brand: Kennametal
Model #: 6017519
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | EC-U |
| Insert Size | 3 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | KCM35B |
| Coating | TiOCN |
| Series | Beyond Evolution |
| Relief Angle | 2 |
| Chipbreaker | CL |
| Multi-Use Application | Grooving; Cut-Off |
| Coating Process | CVD |
| Overall Length (mm) | 9.59 |
| Overall Length (Decimal Inch) | 0.3780 |
| Cutting Height (mm) | 4.01 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Left Hand |
| Insert Seat Size | 3 |
| Overall Width (mm) | 2.58 |
| Overall Width (Decimal Inch) | 0.1020 |
