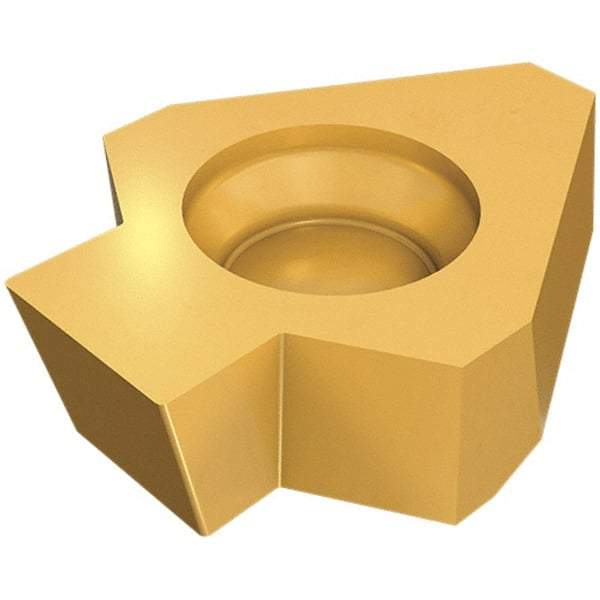

Iscar - 13-12.15-2.25XNUWB 13 Grade IC908, 12.15mm Cutting Width Carbide Grooving Insert - 8.5mm Max Depth of Cut, 2.25mm Corner Radius, TiAlN Finish
Item #: 37733292
Brand: Iscar
Model #: 6405303
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNUWB 13 |
| Insert Size | 13-12.15-2.25 |
| Material | Carbide |
| Cutting Width (mm) | 12.15 |
| Cutting Width (Decimal Inch) | 0.4780 |
| Maximum Depth of Cut (mm) | 8.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3350 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Relief Angle | 5 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0890 |
| Corner Radius (mm) | 2.25 |
| Corner Radius (Decimal Inch) | 0.0890 |
| Coating Process | PVD |
| Overall Length (mm) | 20.20 |
| Overall Length (Decimal Inch) | 0.7950 |
| Series | IscarBroach |
| ISO Number | XNUWB 13-12.15-2.25 IC908 |
| Manufacturers Catalog Number | 6405303 |
| Insert Thickness (mm) | 5.3000 |
