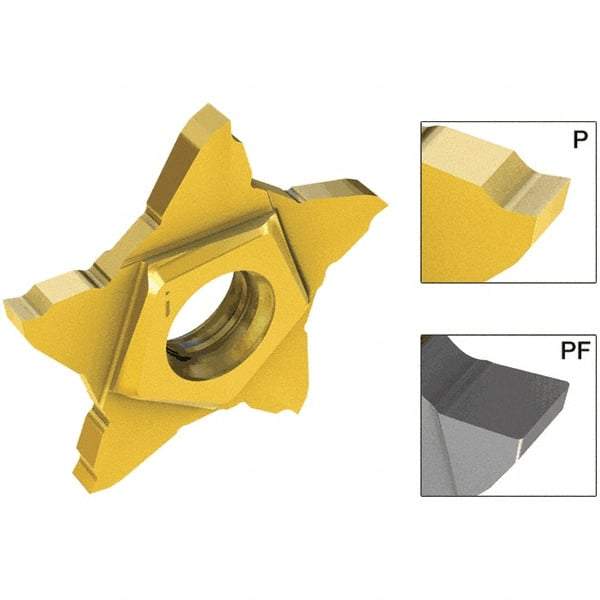

Iscar - 24N250PENTA PF Grade IC30N, 2.5mm Cutting Width Carbide Grooving Insert - 6.5mm Max Depth of Cut, 0.2mm Corner Radius, Uncoated
Item #: 37622107
Brand: Iscar
Model #: 6004956
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N250 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Relief Angle | 7 |
| Chipbreaker | PF |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Series | PentaCut |
| Rake Angle | 6 |
| ISO Number | PENTA 24N250PF020 IC30N |
| Manufacturers Catalog Number | 6004956 |
